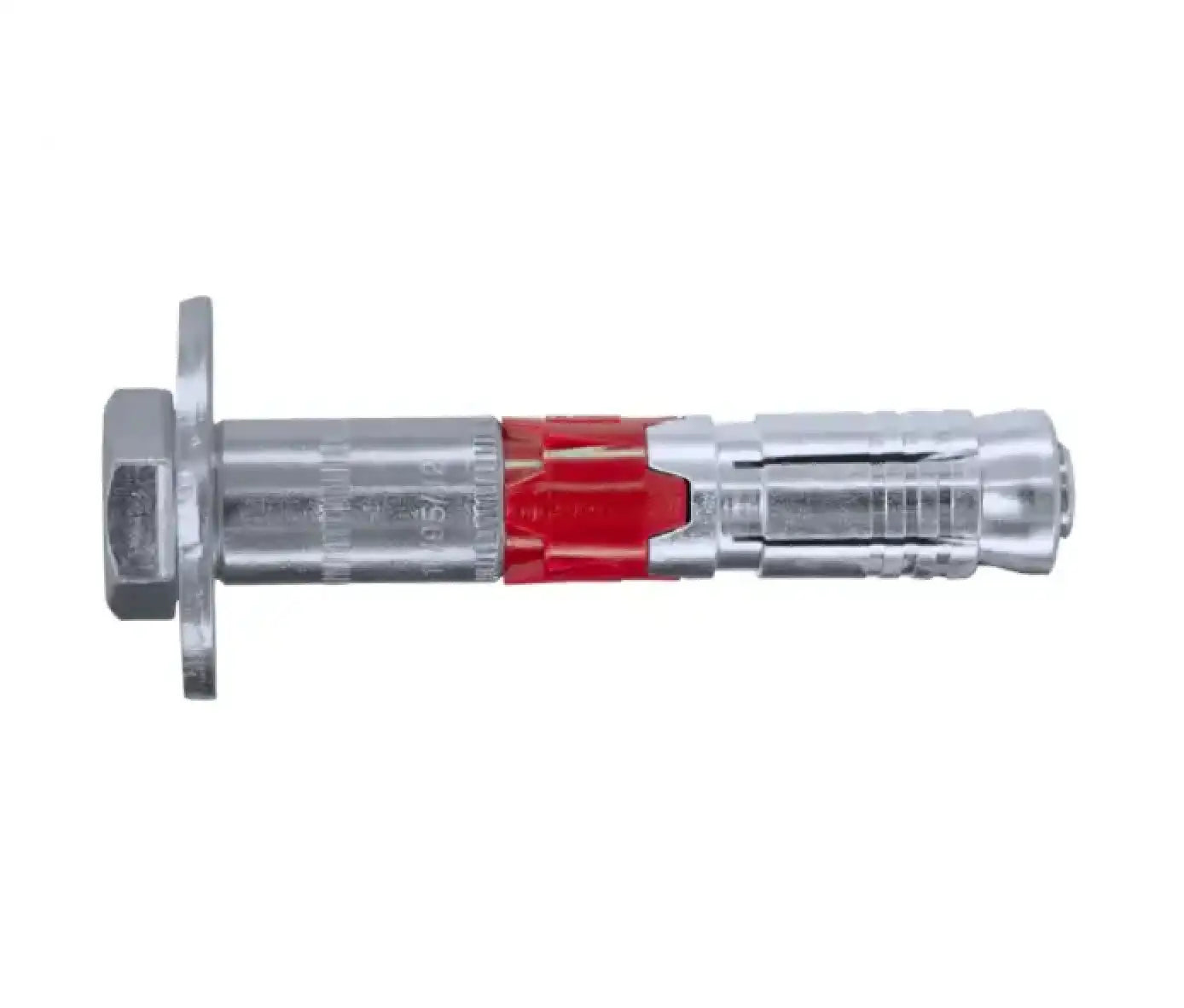

Traditionally, fasteners with an ETA and a diameter of M12 and larger were limited to concrete base materials =150mm. This posed challenges in designing for fasteners used in thin precast concrete panels, necessitating performance solutions beyond the scope of AS5216:2021 and the DTS (Deem-To-Satisfy) requirements of the NCC (National Construction Code). ICCONS, in collaboration with its research & development division, has successfully addressed this limitation, culminating in the release of the STA-EVO M12.
Features
• Designed for use in thin precast concrete panels (125mm min.)
• Available in zinc plated and corrosion resistant zinc nickel
• Comprises of class 8.8 high tensile bolt
• Head and sleeve markings for clear traceability
• High strength large diameter washer (O.D. 44mm)
• Thick sleeve torque controlled expansion anchor
• Unique engineered nylon compression ring prevents rotation and provides positive fixture clamping effect
• Optimal expansion cone geometry offering ultimate performance
Applications
• Raking angles for roof structures
• Precast panel steel plate connectors
• Roof beams
• Steel cleats
• Structural connections
