TDS 1001.3: PBA Panel Brace Anchor
Heavy-duty brace anchor for precast and tilt-up concrete wall panels. High load performance expansion anchor with high tensile and shear characteristics. Tested in accordance to AS3850.1:2015 and easily removable this anchor is specifically designed for the temporary fixture of precast and tilt-up concrete wall panels.
Testing of the ICCONS® PBA20115 Panel Bracing Anchor has been conducted via an independent NATA accredited laboratory in accordance with clause A9 of AS 3850.1:2015. AS 3850:2003 was revised in 2015 and published as 3850 (Prefabricated concrete elements) Part 1 and 2. Part 1 - General requirements and Part 2 - Building construction.
Testing of Brace inserts is covered in Appendix A9 of AS 3850.1:2015 and consists of a much more rigorous testing regime to that referenced in the previous AS 3850:2003.
The new testing criteria assesses the performance of brace inserts for:
• Static tension
• Shear
• Cyclic
• Installation Torque
Features
• Torque controlled expansion anchor
• Engineered compression ring for fixture clamping effect
• Optimum wedge geometry for high performance (low slip)
• Tested in accordance with AS3850.1:2015

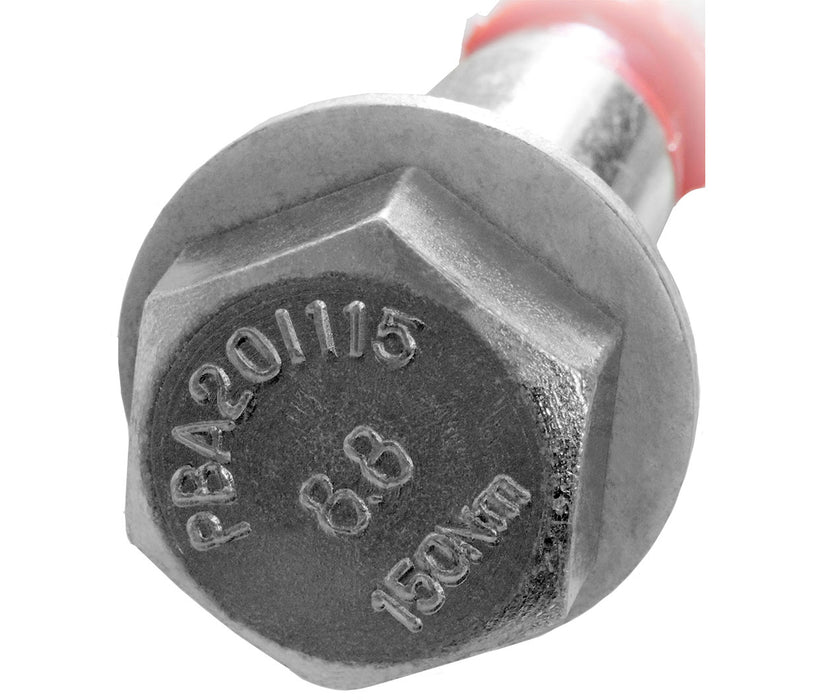

• Class 8.8 bolt for high tensile and shear characteristics
• Simple removal for temporary fixing
Applications

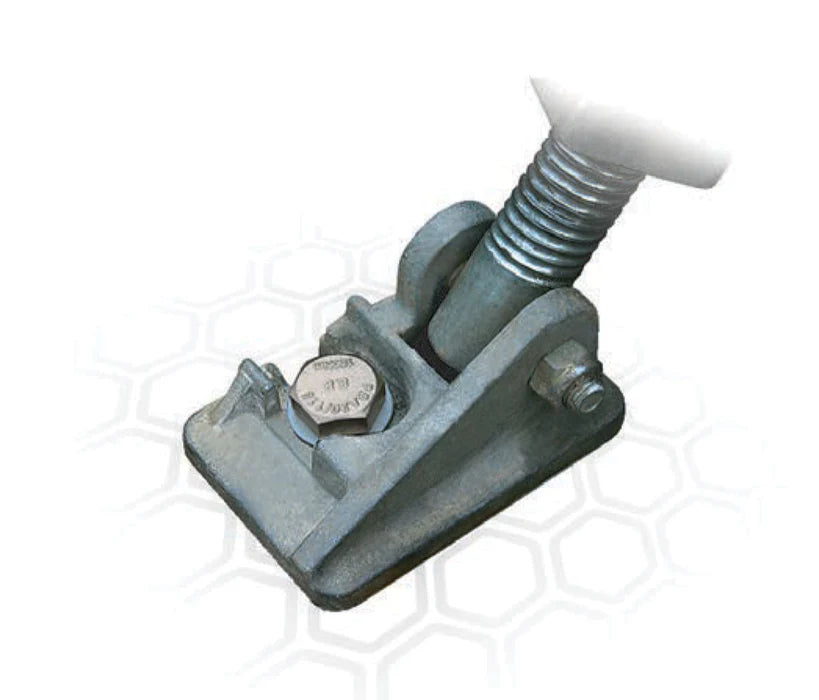

• Precast and tilt-up concrete panel bracing
SESTO is constantly adding new sizes and types of product to it's range. Specific sizes of this product may not be available through our reseller network. Please contact us directly if your search is not successful.
