Blue Head - 15KN Bracing Solution

Sesto FastenersSKU: SXTB10140G

Pack Size: 25 Pack
Size: 10 x 140mm

Description

Downloads

15kN Perimeter Bracing Solution

15kN Bracing Solution Advisory Poster

Independent Test Report

How To Install

Install Torque Specs

15KN Flyer Mandarin Chinese 中国人

BPIR Form: 15kN Perimeter Bracing

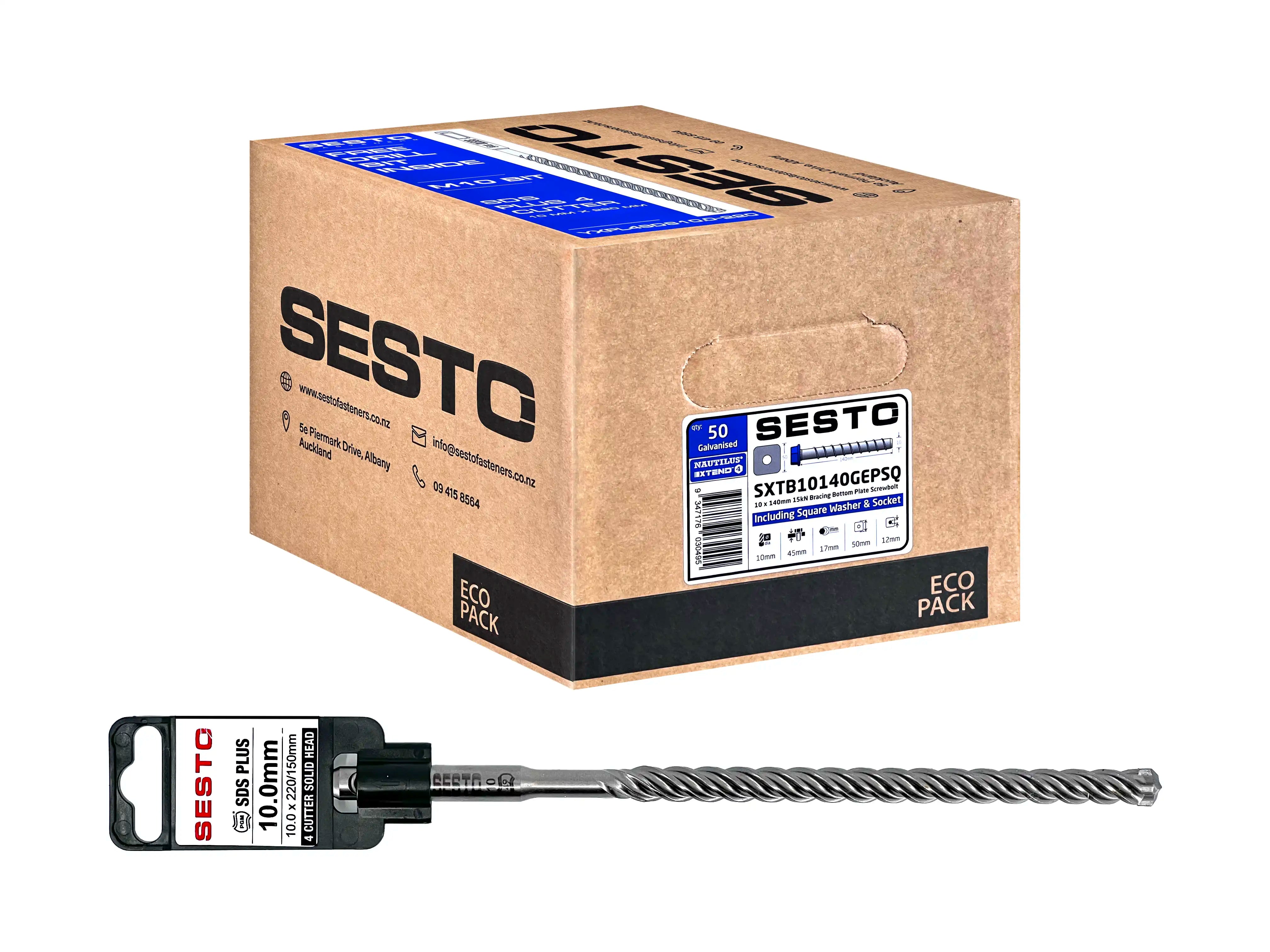

Eco Packs now include 1 x FREE 10 MM Drill Bit!

We are a wholesaler, therefore we cannot sell directly to the end user. If this applies to you, please see our stockist list below to find a store near you.

Available Stockists

Placemakers icon logo
Konnect icon logo
Bunnings icon logo
Carters icon logo

BRACING SYSTEM - PROPRIETARY SOLUTION  Trusted by engineers and architects in New Zealand.

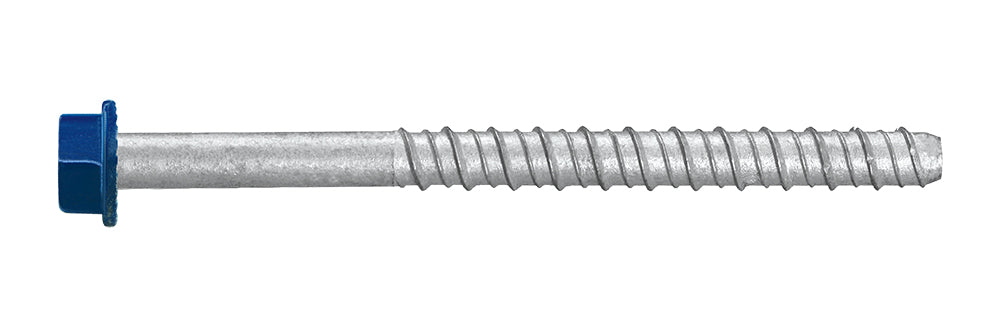

The SXTB10140G, SXTB10150G and SXTB10200G ThunderBolt®Pro anchors have been independently tested and achieved a characteristic tie down load of 15kN (minimum) in 20 MPa concrete. The SXTB10140G, SXTB10150G and SXTB10200G ThunderBolt®Pro anchors are suitable for use as proprietary bracing solution.

The ICCONS® ThunderBolt®Pro is the latest design in high performance screw-in, self tapping concrete anchors for use in a wide range of concrete and masonry base materials. The ICCONS® ThunderBolt®Pro achieves high loads while generating low expansion forces making it ideal for close to edge applications. Available in a mechanically galvanised finish, The ThunderBolt®Pro is the perfect solution for use as a perimeter fixing, complying with New Zealand standard Timber framed buildings NZS3604;2011 ref 7.5.12.2 / 7.5.12.4.



SESTO is constantly adding new sizes and types of product to it's range. Specific sizes of this product may not be available through our reseller network. Please contact us directly if your search is not successful.
