ATS EVO Thin Panel Anchor

Sesto FastenersSKU: ATSeS18090LW

Finish: Zinc
Size: 18 x 90mm (M12 Bolt)

Description

We are a wholesaler, therefore we cannot sell directly to the end user. If this applies to you, please see our stockist list below to find a store near you.

Available Stockists

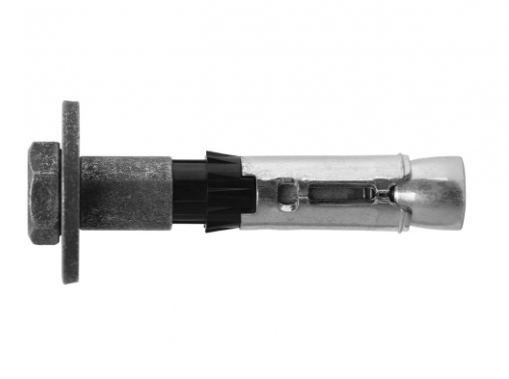

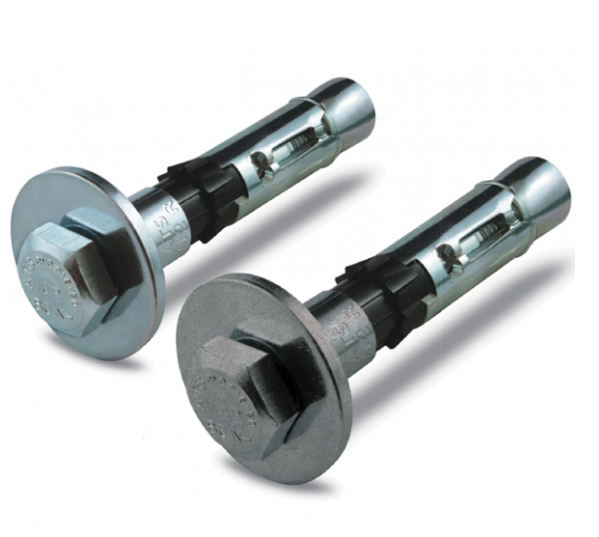

The ATS-EVO heavy duty thin panel anchor by Friulsider is the ideal anchor for extreme load performance.

SAFE INSTALLATION: Optimal expansion guaranteed by the coupling of the cone and body.
UNIFORM EXPANSION: Single piece three expanding segments.
ANTI-ROTATION: The special bush shape prevents rotation.

The ATS-EVO Thin Panel version is suitable for use in both 125mm and 150mm Pre-cast concrete panels.

Features
• Designed for use in thin precast concrete panels

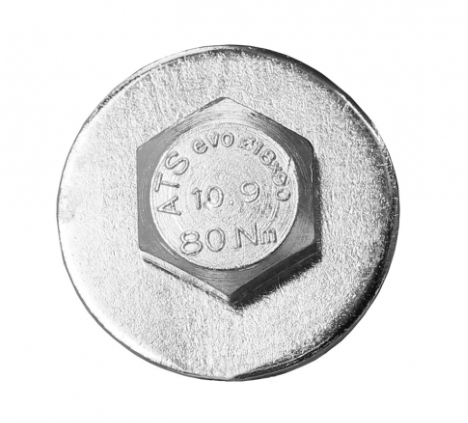

• M12 hex head class 10.9 bolt
• High strength large diameter structural washer (O.D. 44mm)
• Tested in Australian precast concrete
• Independently tested by Swinburne University of Technology (report ref.SSL18-10036)
• Designed for minimum precast concrete panel thickness of 125mm
• Available in Zinc and 3DG corrosion resistant coating

Downloads

ATS-Evo Thin Panel Anchor Brochure

ATS EVO Tech Brochure



SESTO is constantly adding new sizes and types of product to it's range. Specific sizes of this product may not be available through our reseller network. Please contact us directly if your search is not successful.
