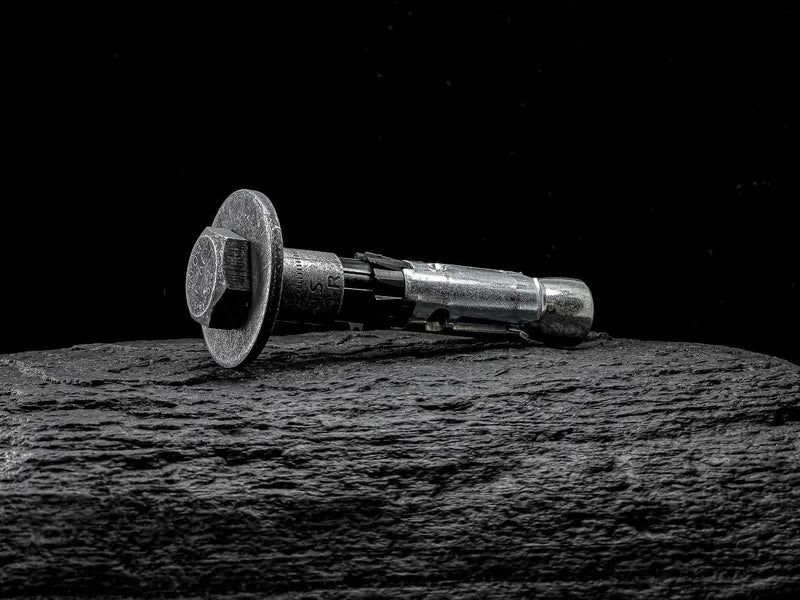

ATS Evo Heavy Duty panel anchor resting on black marble base.

Versatile Thin Panel Bolt: Suitable for use in both 125mm and 150mm precast concrete panels.

When it comes to heavy-duty safety bolts, our ATS-EVO anchor stands out with exceptional features to ensure top-notch performance and safety.

High Resistance 3DG Galv Coating: Our bolts feature a high-resistance 3DG Galv coating with reduced thickness. This coating doesn't interfere with the thread geometry, guaranteeing the correct body/nut coupling.

Special Self-Healing Anti-Scratch Finish: The self-healing external finish ensures complete fixing coating, even in the event of minor impacts with other metallic bodies.

Compliance with Regulations: We take safety seriously. Our ATS-EVO anchor complies with the RoHS directive 2011/65/EU, the European CE Reach regulation 1907/2006, and is Chromium VI-free.

Corrosion Resistance: Tested in Salt Spray for up to 1000 hours, our anchor offers corrosion resistance, with minimum resistance depending on the fixing geometry.

Innovative Design for Extreme Load Performance: The ATS-EVO anchor is designed for safe installation, uniform expansion, and anti-rotation, making it the ideal choice for extreme load performance.

Applications in Precast Panels:

Raking angles for roof structures
Precast panel steel plate connectors
Roof beams
Steel cleats
Structural connections
M12 hex head class 10.9 bolt
High-strength large diameter structural washer (O.D. 44mm)
Tested in Australian precast concrete
Independently tested by Swinburne University of Technology (report ref.SSL18-10036)
Available in Zinc and 3DG corrosion-resistant coating
Choose the anchor that goes beyond expectations – the ATS-EVO Heavy Duty Thin Panel Anchor. Your safety is our priority!
