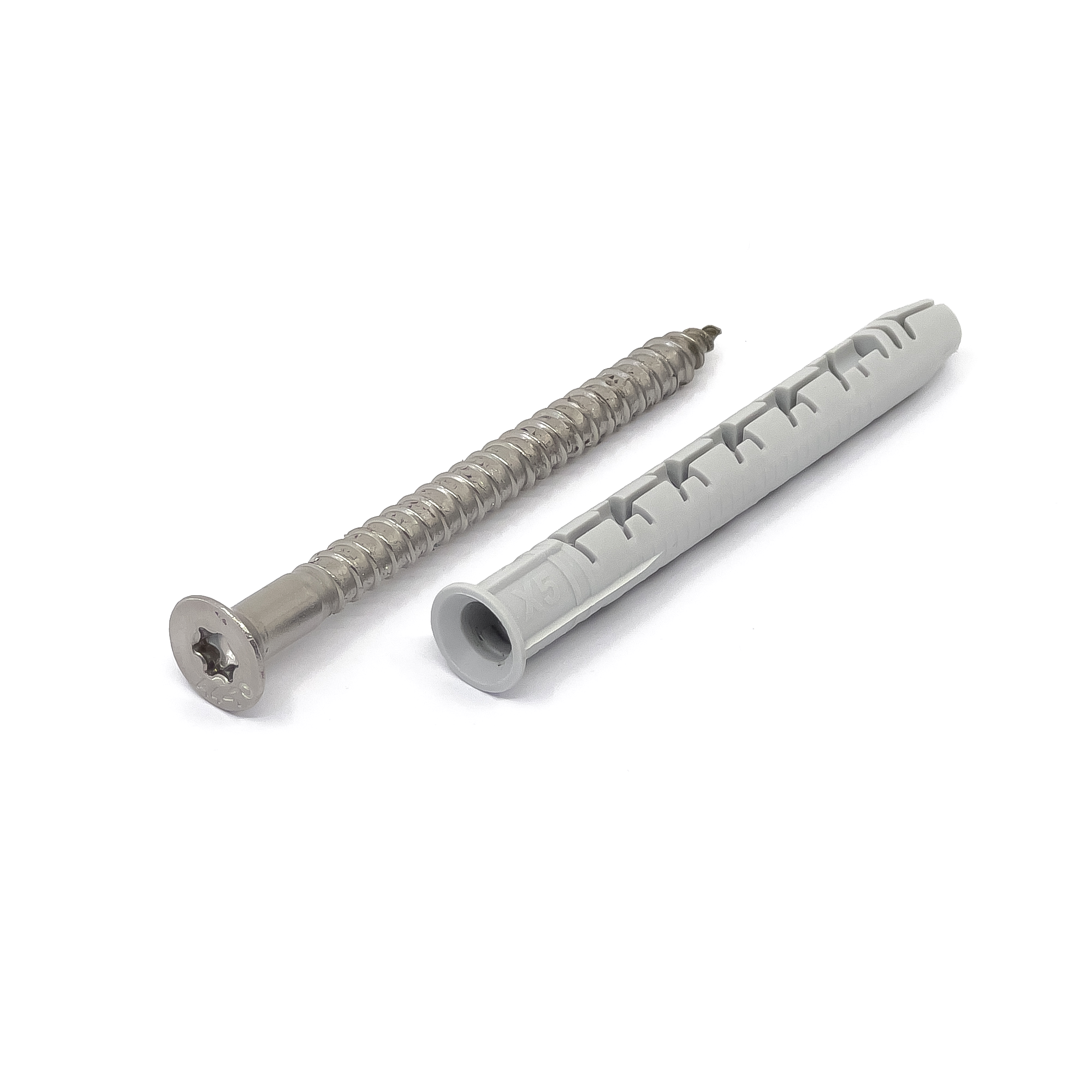

Friulsider FM-X5 Nylon Frame Fixing - Countersunk

Sesto FastenersSKU: FCMX510085G

Finish: Galvanised
Size: 10 x 85mm

Description

We are a wholesaler, therefore we cannot sell directly to the end user. If this applies to you, please see our stockist list below to find a store near you.

Available Stockists

The Friulsider FM-X5 Nylon Frame Fixing is the most versatile of its kind, guaranteeing a perfect installation in all major base materials. Trusted by engineers and architects in New Zealand. FM-X5 distinguishes itself for its innovative multi-expansion that creates undercuts with various shapes and diameters: the plug occupies all empty spaces, while the tip has a differentiated expansion, increasing pull-out resistance and safety. Available in a Countersunk Head for a discrete or flush finish.

Features
• Countersunk head for a discrete / flush finish
• Comes pre-assembled to ensure an immediate functional use of the plug
• FM-X5 is made of a high quality nylon which has a very high percentage of elastomer allowing for smooth screwing
• Can be inserted by hand during the initial insertion stage
• Maximum versatility
• Has a fire resistance class of 90 minutes
• ETA approved and National Code Compliant

Applications
• Facade and roofing substructures
• Insulation fixings
• Profiles
• Concrete
• Stone
• Solid brick
• Hollow brick
• Aerated concrete

Downloads

FM-X5 Catalogue

FM-X5 Nylon Plug Flyer

FM-X5 Technical Data

FM-X5 Aerated Concrete TDS 1037.1

Friulsider FMX5 Nylon Frame Fixing ETA 10-0415

ETA Certificate of Conformity- 1404 CPR 2557

Salt Spray Test FM-X5 3DG

Friulsider FM-X5 Declaration of Performance

BPIR Form: Friulsider FM-X5 Countersunk



SESTO is constantly adding new sizes and types of product to it's range. Specific sizes of this product may not be available through our reseller network. Please contact us directly if your search is not successful.
